Designed for use on concrete slabs, planks and block and beam floors to capture waterflow efficiently in wetroom applications, the Linear Screed Drain from CCL Wetrooms has been developed specifically for concrete or screeded floors.
The shower drain incorporates our unique Lo-Seal waterless trap technology which has been granted BBA approval and is supported with a lifetime guarantee.
A key feature of the Linear Wet Room Screed Drain is its shallow drainage channel, the total height from the base to the top of the trough being only 55mm, making it perfect for today’s modern construction methods.
Our linear wet room drains are available with one, two or three traps and a choice of stylish grill finishes, the perfect drain. for any application.
Why Use Our Wetroom Linear Screed Drain?
Offering the shallowest drainage solution on the market, our Linear Screed Drain is designed to offer you freedom to position the drain anywhere within the shower. Making use of our unique Lo-Seal trap, our shallow drainage can be coupled with a variety of grill lengths, heights, and finishes that complement all projects.
Benefit from our simple floor build-up option, along with a variety of waterproofing products, that complete the full wetroom solution. This includes our Lifetime Guarantee.
Linear Screed Shower Drain Features
The linear screed wetroom drain from CCL Wetrooms features:
- Minimum height 55mm with Standard Brackets
- Minimum height 38mm with Extra Shallow Brackets
- BBA Approved
- Lifetime Guarantee
- Lo-Seal Waterless Trap
- 360° Rotatable outlet
- Centre, left and right-handed trap position
- Flow rate up to 70 L/min
- Height adjustable brackets
- Height adjustable grill
- Grill lengths up to 2000mm
- Fast Track Bespoke service – manufactured & delivered in 3-4 days
Linear Screed Drain Applications
With its lifetime guarantee, you can rest assured that our Linear Screed Drain is a quality drainage solution. With a shallow drainage channel, the total height, from the base to the top of the trough, is only 55mm, making this drainage product ideal for use in modern construction.
Our shallow drainage solution is adaptable to a series of projects and environments, offering the ultimate experience in drainage. Whether installed in a gym or the home, our linear screed drain is perfect for a wide range of applications.
The Linear Screed Drain works across many settings, including:
- Homes
- Care homes
- Hotels
- Gyms
- Leisure centres
Want to know more about our Linear Screed Drain?
Download our Linear Screed Drain Brochure or Watch our Installation Video
There are two components required to specify a Linear Screed Drain – the shallow drainage channel body and the grill. To specify the drain body, select the required number of traps along with the bracket type. Then, simply choose the grill, selecting the desired type, length and finish.
Wet room Drainage Channel Body
Number of traps
- Single Trap – flow rate up to 29 L/min
- Double Trap – flow rate up to 56 L/min
- Triple Trap – flow rate up to 70 L/min
Bracket type
- Standard Height – adjustment 55mm-88mm

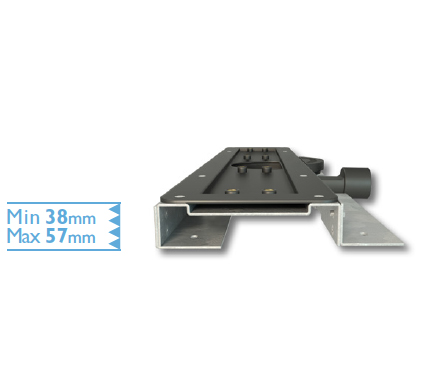

- Extra Shallow Height – adjustment 38mm-57mm * Extension brackets are available for floor depths above 88mm.
Grill
Grill type – Wall or Floor
- Floor Grill – for installation off the wall
- Wall Grill – positioned neatly up against the wall
Grill Length
- 15 Standard lengths
- Bespoke lengths from 600mm – 2000mm
- Fast Track Bespoke service – delivered in 3-4 days
Grill Finish
Close Tab
The unique Lo-Seal waterless trap has been specially designed with a spring-loaded mechanism which keeps the trap sealed when not in use. This ensures that even when left unused for prolonged periods the trap cannot dry out, making it ideal for situations where the shower is not in everyday use. The smart design of the linear trough allows the waste position to be rotated through 360° enabling installation in most scenarios with ease.
- Easy to clean and replace trap
- Trap remains closed when not in use
- No siphoning of the trap due to other appliances
- No chance of smells or gases entering the room
- BBA approved
- Lifetime guarantee
Single Trap
Flow rates up to 29 L/min *1
Centre trap position (shown)
Left and right-handed options also available
Outlet position rotates through 360°
Double Trap
Flow rates up to 56 L/min *1
For medium-high performance showers
Outlet position rotates through 360°
Triple Trap
Flow rates up to 70 L/min*1
For high-performance showers
Outlet position rotates through 360°
‡1 Flow rates indicated are a guide only, based upon 42mm waste pipe and swept bends.
Close Tab

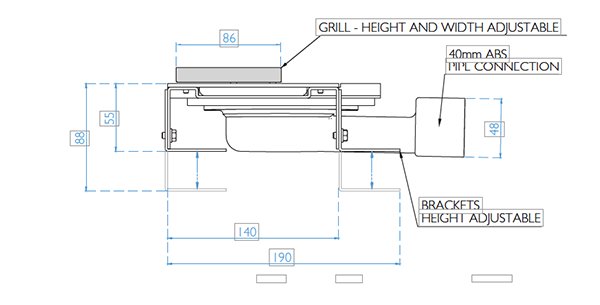

The standard bracket allows the linear shower drain to be set as low as 55mm, with height adjustment up to 88mm. Extension brackets are available for floor depths above 88mm. The extra shallow bracket allows the drain to be set as low as 38mm, with height adjustment up to 57mm. This requires the drain outlet to be recessed into the slab.
Height Extension Bracket

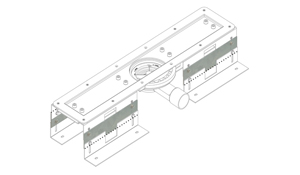

Use extension brackets where the required height of the drain body exceeds 88mm.
Each bracket will increase the height by 30mm, multiple brackets can be used if necessary.
Close Tab
There are two types of grill available with the Linear Screed Drain, both fit onto the drain body using 8 pre-set fixing points.
Both the Linear Floor Grill and Wall Grill are independently height adjustable, enabling the grill to be positioned precisely to suit the tile thickness being used.
The final position of the Wall Grill is also independently width adjustable by up to 38mm, allowing the grill to be neatly positioned up against the wall tile after the drain body has been installed, for a perfect finish every time.
All grills are manufactured in 316 grade stainless steel ensuring a stunning high quality durable finish.
Floor Grill
Wall Grill
Height Adjustment
Floor Grill
The Floor Grill is independently height adjustable in 1mm increments to suit different tile thicknesses.
Wall Grill
The Wall Grill is independently height adjustable in 1mm increments to suit different tile thicknesses. The final position of the Wall Grill is also independently width adjustable by up to 38mm.
Grill Length
All drain grill types are offered in 15 standard lengths ranging from 600mm to 2000mm, with the majority available from stock on a next day delivery service.‡1
Where a standard grill length is not suitable we offer a FAST TRACK bespoke design service, manufactured and delivered in as little as 3-4 days.
‡1 Excludes grill types B & C greater than 1500mm.
The Linear Screed Drain body is always installed first, prior to the application of the waterproofing membrane, with the grill installed at the point of tiling.

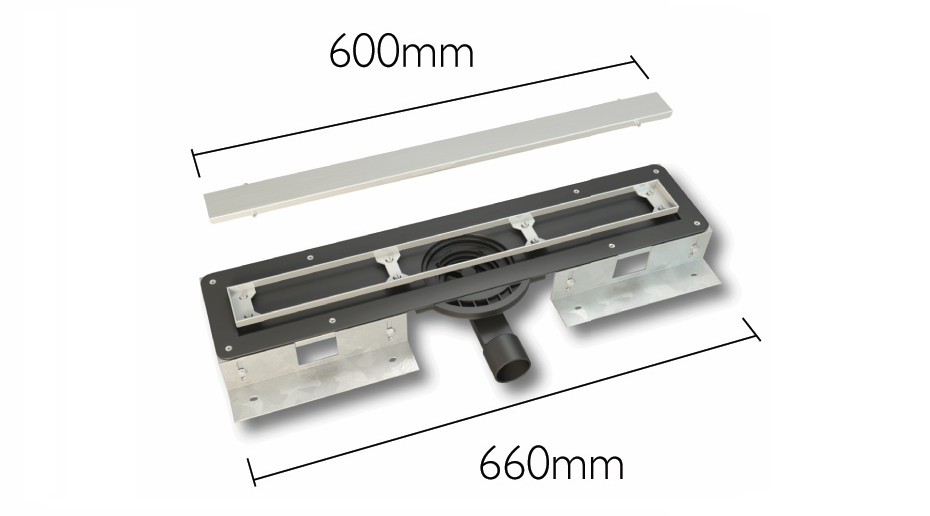

Regardless of the length of grill, the Linear Screed Drain body always remains the same at 660mm. Where the grill length exceeds 660mm the ends of the grill overhang the drain body and are supported with tile adhesive – see image below.
The following standard grill lengths are available:
- 600mm
- 700mm
- 800mm
- 900mm
- 1000mm
- 1100mm
- 1200mm
- 1300mm
- 1400mm
- 1500mm
- 1600mm
- 1700mm
- 1800mm
- 1900mm
- 2000mm
For grill types S & F greater than 1500mm; the Insert is supplied in two equal sections. Offset grill position available as a bespoke.
Fast Track Bespoke
Where a standard grill length is not sufficient to meet the requirements of a project, such as when designing the drain to fit exactly between two walls, a bespoke length may be required.
We understand the exact grill length required may not be known until the shower has been tiled, therefore to meet such requirements we offer a unique production service, where we can manufacture and deliver a bespoke length grill in 3-4 days.
We can achieve this due to the unique design of our linear wet room drain, with the drain body supplied separately, with the grill to follow.
- Any Length grill between 600mm-2000mm
- Manufactured and delivered in 3-4 days
- Grill types A, S8, S12 & F
- No drawing required‡2
‡2 Subject to drain body being installed centrally within the shower area
Bespoke Grill Design
We also offer a bespoke design service where we can manufacture a grill to a specific width or height, or to a completely unique design, usually within 2-3 weeks. Please contact our technical team for further information.
Wall to Wall Grill
Where a wall to wall grill finish is required it is recommended to take a measurement on-site from the face of the wall tiles, therefore ensuring there are no gaps either side of the grill. The grill is manufactured and delivered in 3-4 days using our FAST TRACK Bespoke grill service.
Close Tab
Ultimately the grill finish is the only visible element of our wetroom system and as such, is often the defining factor of the overall design.
From the contemporary Stone-Infill or ultra-stylish Frameless, to the simplicity of the Brushed stainless steel, we have a grill finish to complement any design style.
We manufacture all our linear wet room drain grills using only 316 marine-grade stainless steel, ensuring a stunning high-quality durable finish, complete with our Lifetime Guarantee.
The grill insert is easily removed for cleaning and maintenance, using the key provided with the grill.
Stone-Infill
Allows a section of matching stone or tile to be inserted.
Type S – Stone-Infill Stainless Steel.
Suits 6-8mm stone thickness.
Type S-MB – Stone-Infill Matt Black
Suits 10-12mm stone thickness.
Frameless
Type F – Frameless Grill ‡1
Ensures a stunning almost invisible finish, using a section of matching stone or tile. Frameless design matches all brassware finishes. Suits any stone thickness.
Type F – Frameless Grill ‡1
Suits any stone thickness
Standard Grill
Choice of designs in a metallic finish
Type A – Solid
With a 5mm gap around the grill for a sleek stylish finish.
Type A-MB – Solid Matt Black
Type B – Slotted
Holes with a brushed stainless steel finish.
Stock lengths 600mm – 2000mm. Bespoke lengths are manufactured and delivered in as little as 3-4 days. All grill finishes are kept in stock, see ‘Grill Length’ within the Grill Type tab for available lengths and details of our bespoke manufacturing service. For ordering your product see our product codes in the tab below.
*1 For grill types S & F greater than 1500mm, the insert is supplied in two equal sections. Suitable for stone and porcelain tiles only.
Close Tab
The Linear Screed Floor / Wall Drain has been developed specifically for screeded floors.
The key feature of the Linear Screed Floor / Wall Drain is its height – the minimum height from the base to the top of the trough is only 55mm making it a great choice for modern construction.
The drain incorporates a unique waterless trap which has a Lifetime Guarantee and has been granted BBA approval.
CCL Wetrooms – Linear Screed Drain Installation Instructions
Close Tab
Product Codes – Wall Grill
Add code for Grill Finish:
Stone-Infill options:
S8 = Stone-Infill Stainless Steel
S8-MB = Stone-Infill Matt Black
Suits 6-8mm tile thickness
S12 = Stone-Infill Stainless Steel
S12-mb = Stone-Infill Matt Black
Suits 10-12mm tile thickness
S20 = Stone-Infill Stainless Steel
S20-MB = Stone-Infill Matt Black
Suits 18-20mm tile thickness
F = Suits any tile thickness
Brushed stainless steel options:
A = Solid
A-MB = Solid Matt Black
B = Slotted
Example:
Grill Type – Grill Length / Grill Finish
SWG – 1100 / S20
Product Codes – Floor Grill
Add code for Grill Finish:
Stone-Infill options:
S8 = Stone-Infill Stainless Steel
S8-MB = Stone-Infill Matt Black
Suits 6-8mm tile thickness
S12 = Stone-Infill Stainless Steel
S12-mb = Stone-Infill Matt Black
Suits 10-12mm tile thickness
S20 = Stone-Infill Stainless Steel
S20-MB = Stone-Infill Matt Black
Suits 18-20mm tile thickness
F = Suits any tile thickness
Brushed stainless steel options:
A = Solid
A-MB = Solid Matt Black
B = Slotted
Example:
Grill Type – Grill Length / Grill Finish
SFG – 1100 / S20
Close Tab
CONTACT US
Linear Screed Wetroom Drain FAQs
What is a Linear Drain?
A linear drain is a narrow and long drain designed to collect and drain water from a shower or wetroom floor. Sleek, compact and flexible, linear drains suit multiple applications and styles, and can be installed almost anywhere along your shower floor.
How Do Linear Shower Drains Work?
As a specialist drainage solution, linear screed shower or wetroom drains work by enabling the waterflow to move through the drain and directly into the trough, which is a channel beneath the shower floor. From there, the water enters into the drainage system.
What Size Linear Wetroom Drain Do I Need?
Your ideal linear drain dimensions will depend on not only the size of the shower, but also the location of the drain. This might change for every new setting. For a better understanding of your drain requirements, consult an expert like CCL.
How Do You Clean Linear Wetroom Drains?
To keep your linear wetroom drain clean, through regular maintenance, ensure that no extra build-up is keeping your drainage system blocked and unable to dispose of excess, or waste, water. Routinely clear away any debris and carefully inspect the drain for any trapped, or sealed, waste. Properly dispose of debris and flush your drain with hot water – avoiding any harmful chemicals, which could cause pipe damage.
Where Do You Install A Linear Drain?
Our linear screed drains can be installed next to a your wetroom’s short or long wall (using our wall grill) or positioned just off the wall (using our floor grill.
