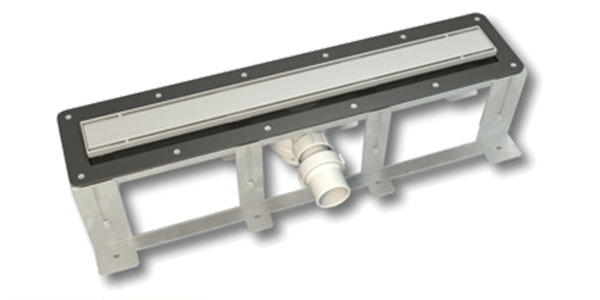

Much like our Linear Screed Drain, the Linear Screed Line is designed for use on concrete or screeded floors, including concrete slabs, planks and block and beam floors.
Renowned for its versatility, the Linear Screed Line can be specified with the option of one, two or three traps. Containing a 50mm waterseal TR50 trap that is supported by a lifetime guarantee, our Screed Line drain is suitable for almost any wetroom application on a solid floor.
We offer the choice of a horizontal or vertical outlet, as well as 5 different grill finishes to match all styles of wetroom design. Get in touch with one of our wetroom specialists today for technical advice about the Linear Screed Line.
Want to Order Our Linear Screed Line Product?
Key Features
- Horizontal or Vertical Outlet
- 50mm Waterseal trap EN274-1:2002.
- Flow rate up to 68 L/min ‡1
- Lifetime Guarantee
- 360° Rotatable outlet
- Centre, left and right handed trap position
- Height adjustable brackets & grill
- Grill lengths up to 2000mm
- Fast Track Bespoke service – manufactured & delivered in 3-4 days
View Brochure

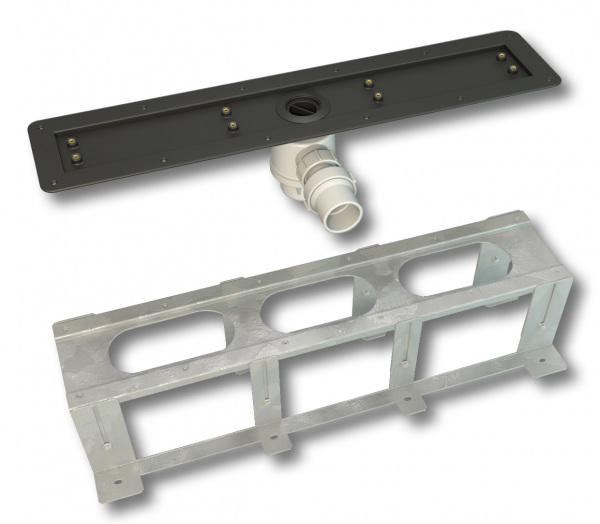

To build the Linear Screed Line drain, you will first need to select the number of traps you require, depending on the flow rates you wish to achieve. The bracket type should also be chosen depending on the floor build up. Once you have specified these, select the type of grill (floor or wall), taking into account the length and finish of grill you require.
Drain Body
Number of traps
- Single Trap – flow rate up to 24 L/min
- Double Trap – flow rate up to 41 L/min
- Triple Trap – flow rate up to 68 L/min
Type of traps
- Horizontal Outlet
- Vertical Outlet
Bracket type

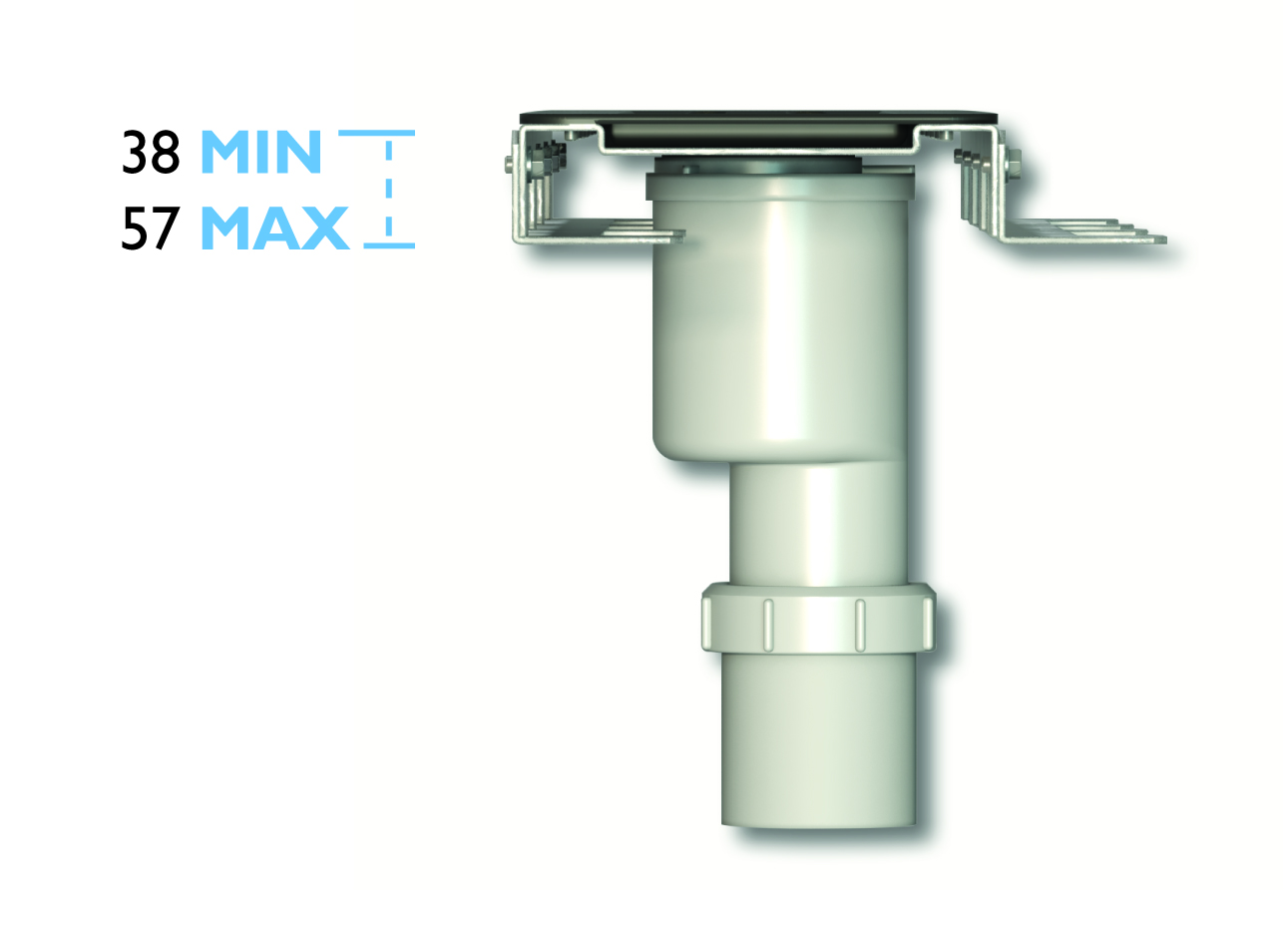

- Standard Height – adjustment 138mm-218mm
- Extra Shallow Height – adjustment 38mm-57mm
Grill
Grill type – Wall or Floor
- Floor Grill – for installation off the wall
- Wall Grill – positioned neatly up against the wall
Grill Length
- 15 Standard lengths
- Bespoke lengths from 600mm – 2000mm
- Fast Track Bespoke service – delivered in 3-4 days
Grill Finish
- 5 Stylish grill finishes
Our Linear Screed Line has a 50mm waterseal, top access trap designed specifically for wetroom installations on solid floors. The linear trough’s clever design means the trap can be positioned centrally or in a left or right hand position directly on site. It can also be rotated 360° for added ease of installation.
- 50mm Waterseal
- 360° Rotatable outlet
- Centre, left and right handed trap position
- Top access for easy maintenance
- Lifetime Guarantee

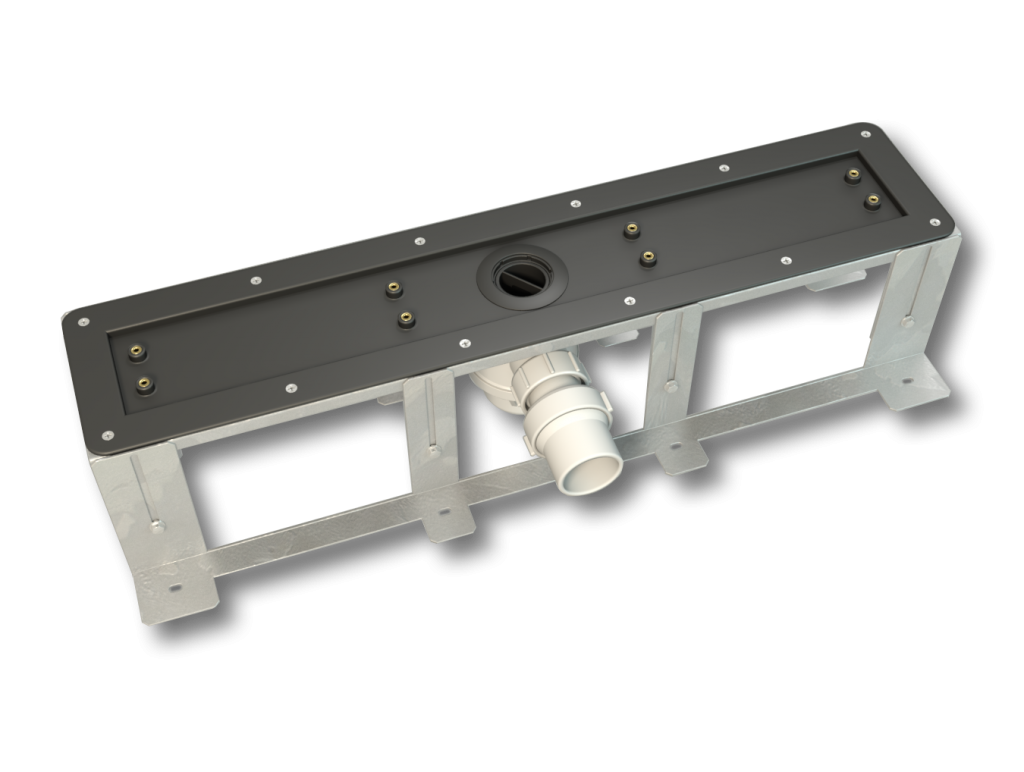

Single Trap
Flow rate up to 24 L/min ‡1
Variable trap position (centre shown)
Left and right handed option also available
Outlet position rotates through 360°

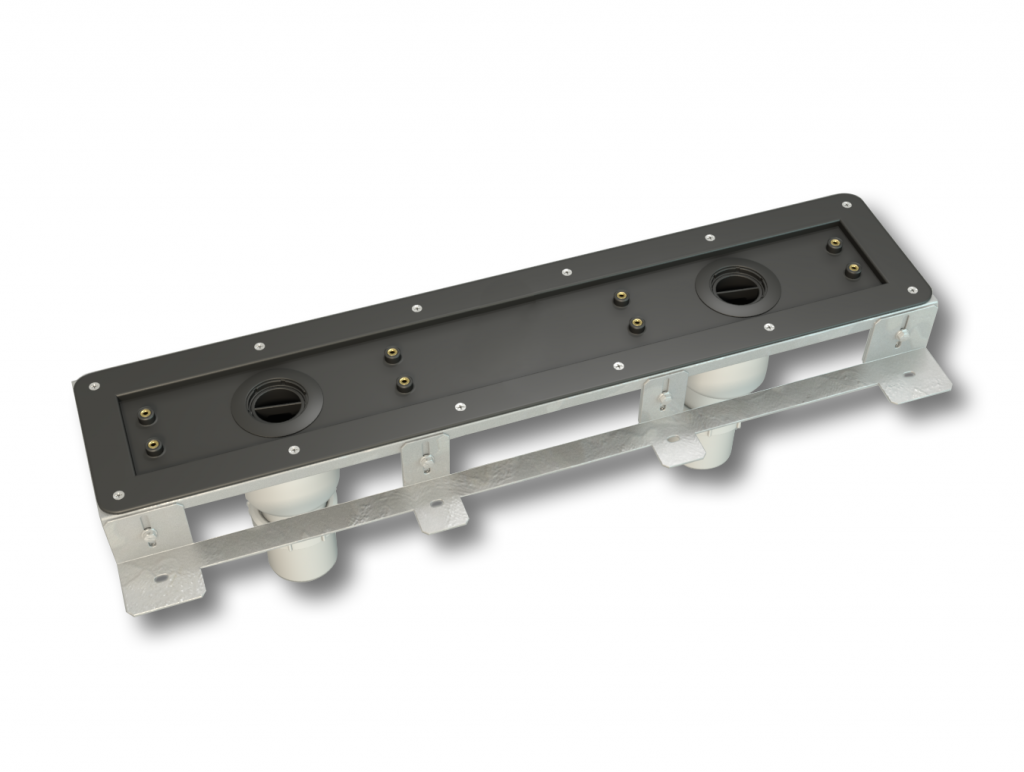

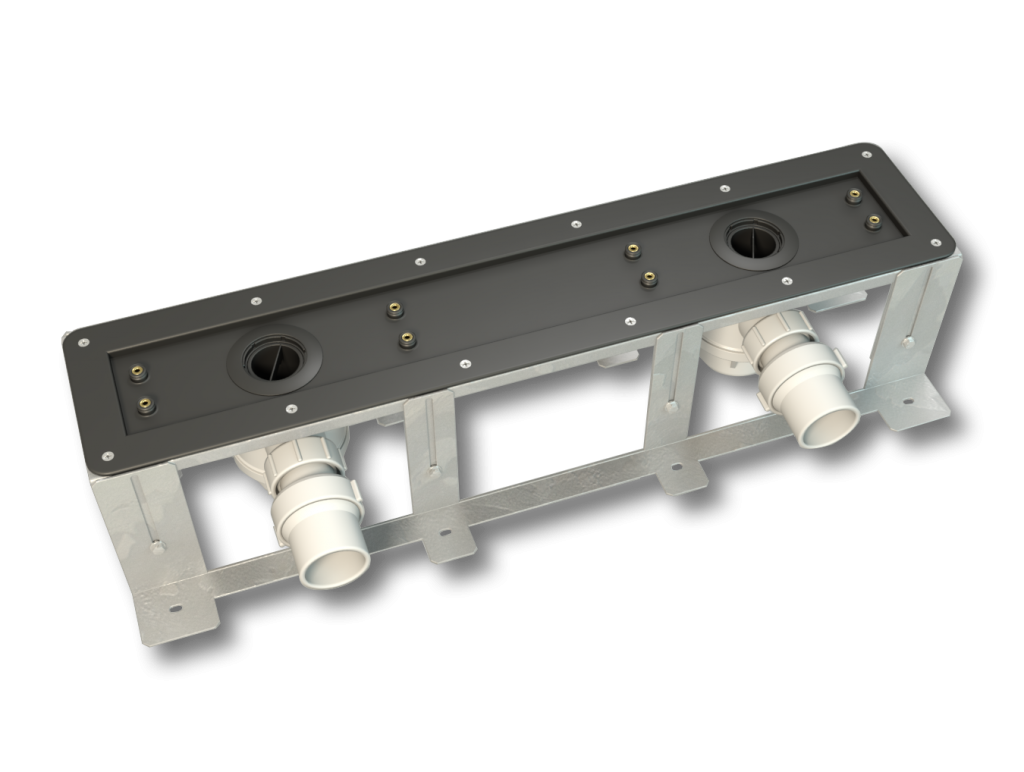

Double Trap
Flow rate up to 41 L/min ‡1
For medium-high performance showers
Variable trap position (centre, left or right)
Outlet position rotates through 360°

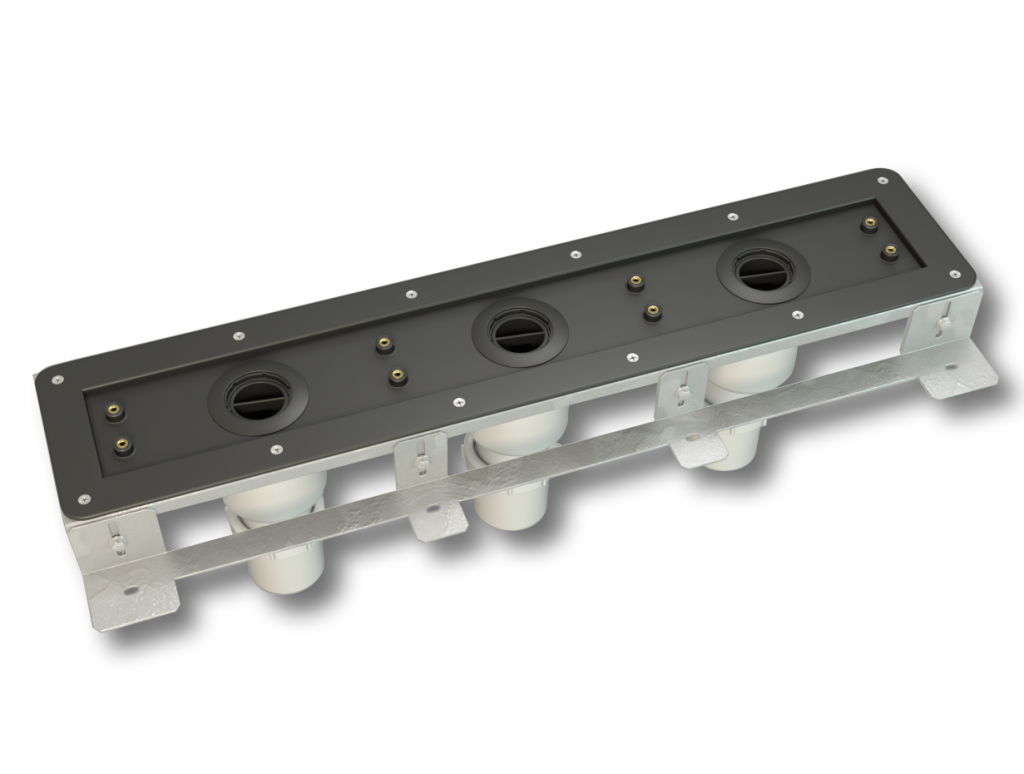

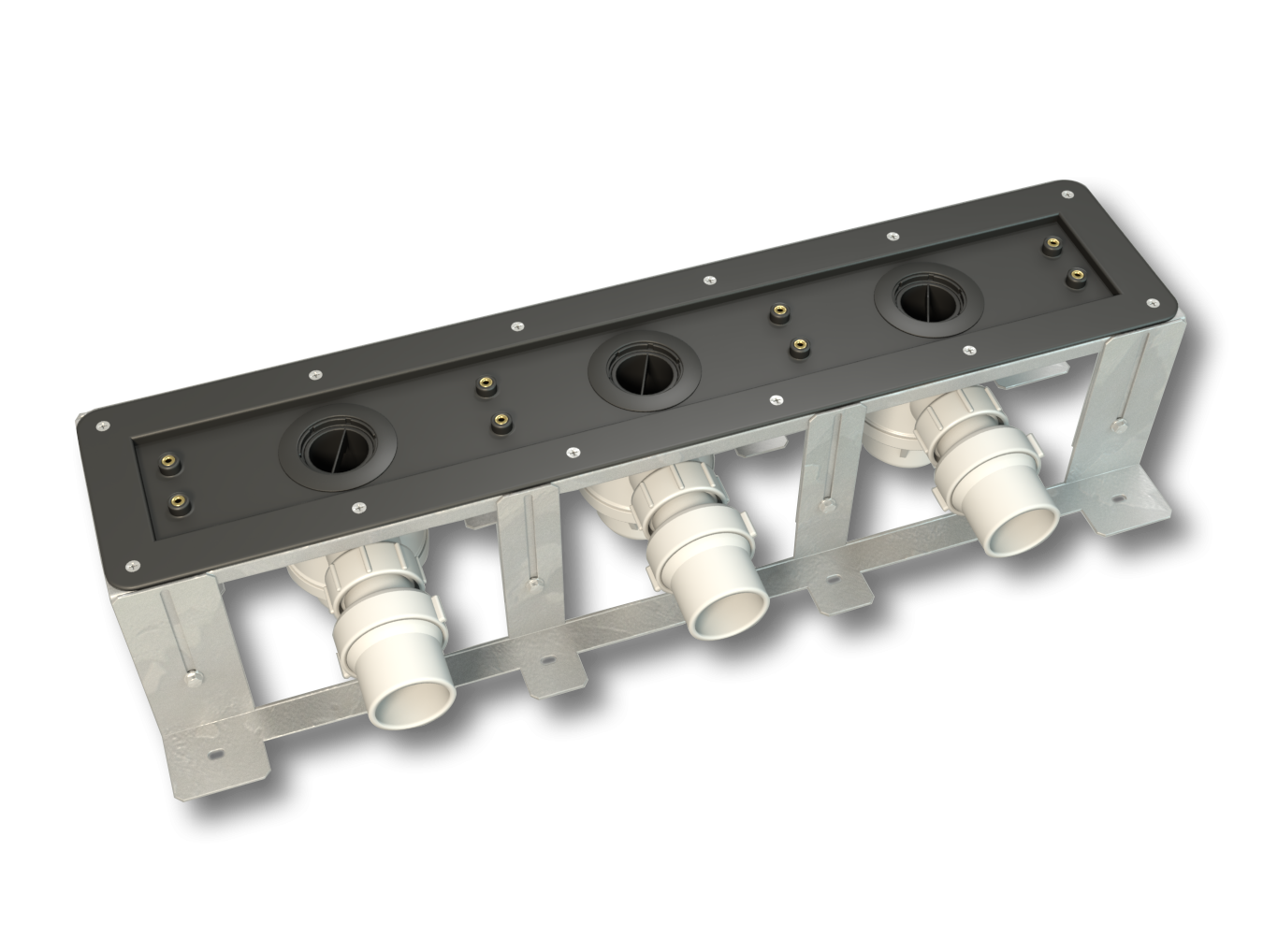

Triple Trap
Flow rate up to 68 L/min ‡1
For high performance showers
Outlet position rotates through 360°

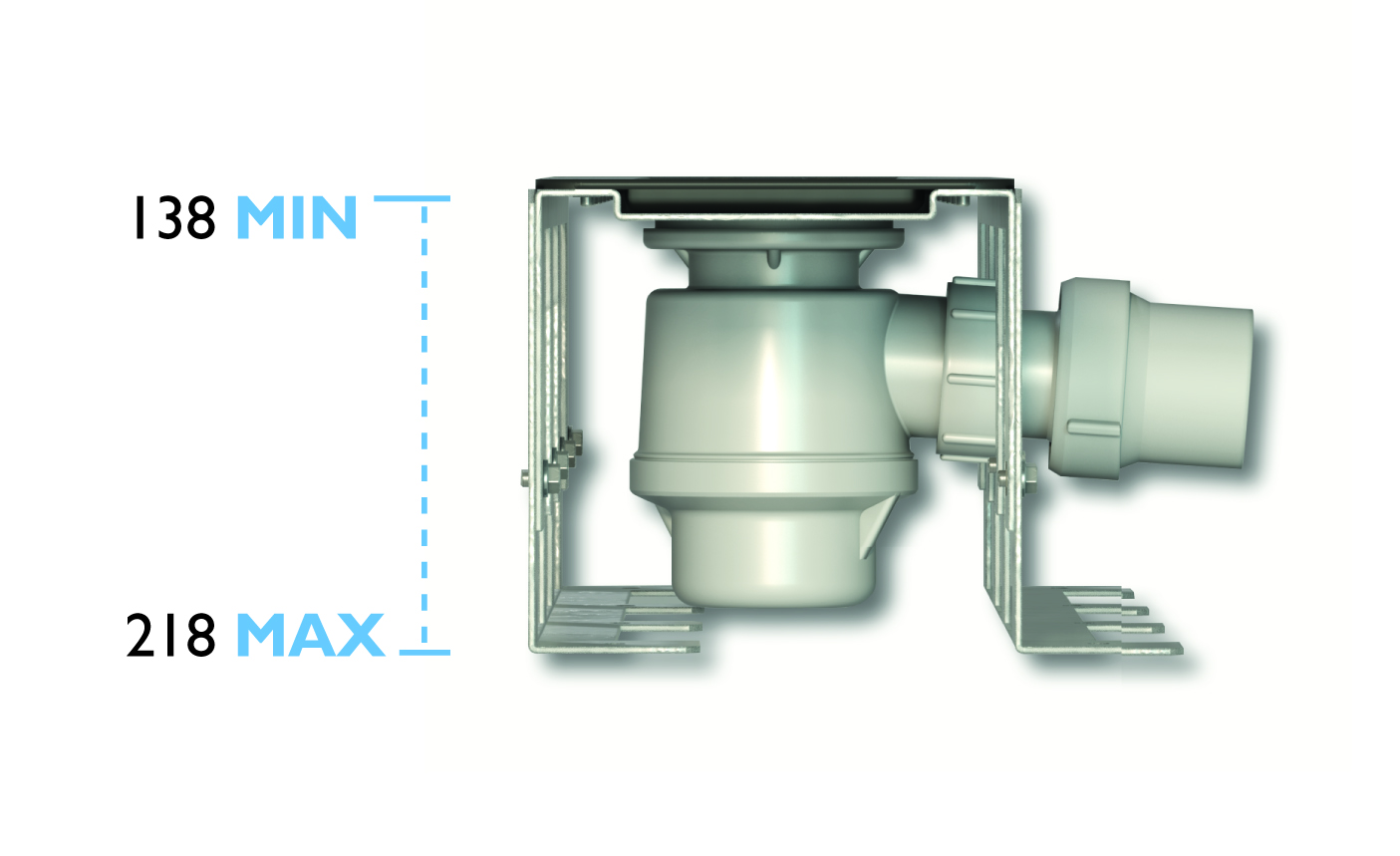

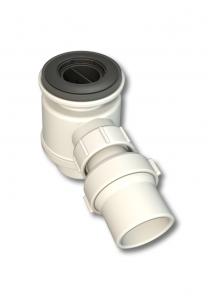

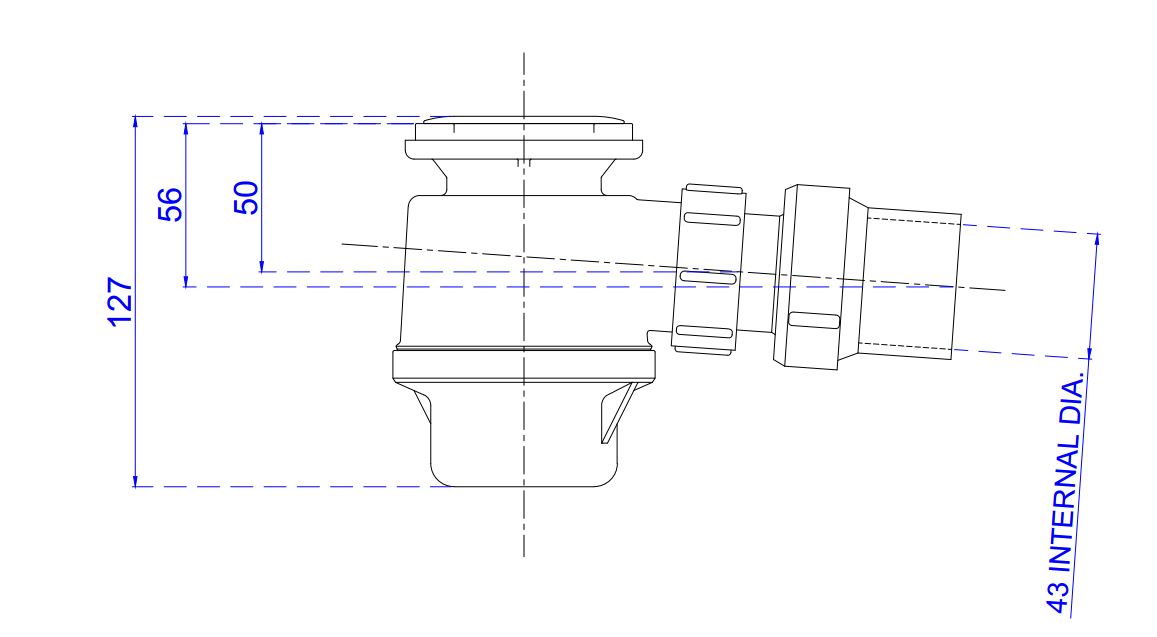

Horizontal Trap

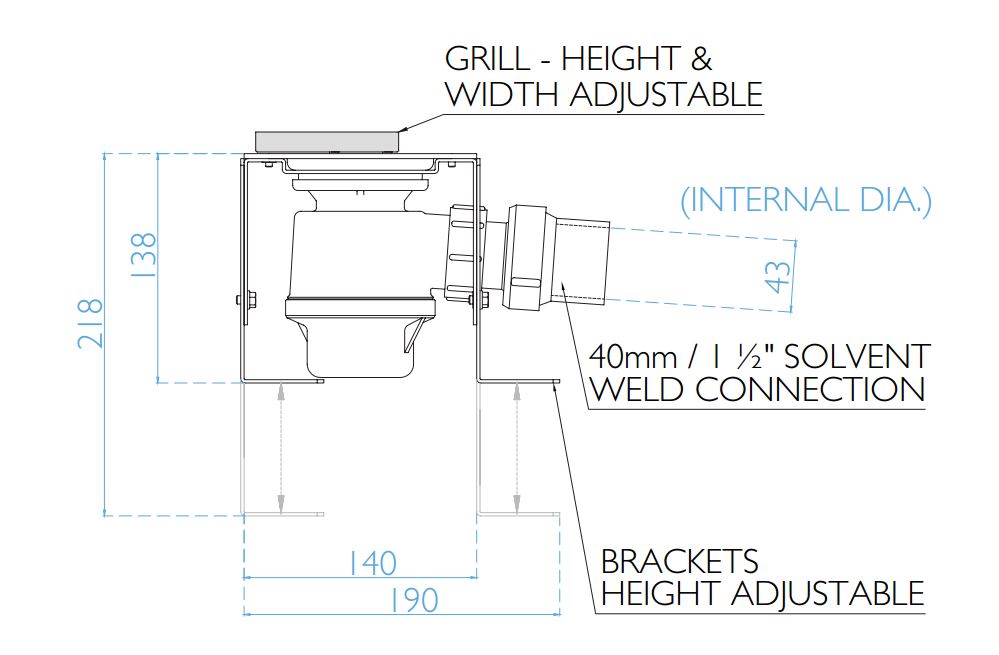

The horizontal trap incorporates an adjustable ball joint, making installation effortless. It has the ability to be positioned centrally, left or right handed, with cleaning and maintenance easily accessible from the top.
- 50mm Waterseal
- 40mm ABS pipe connection

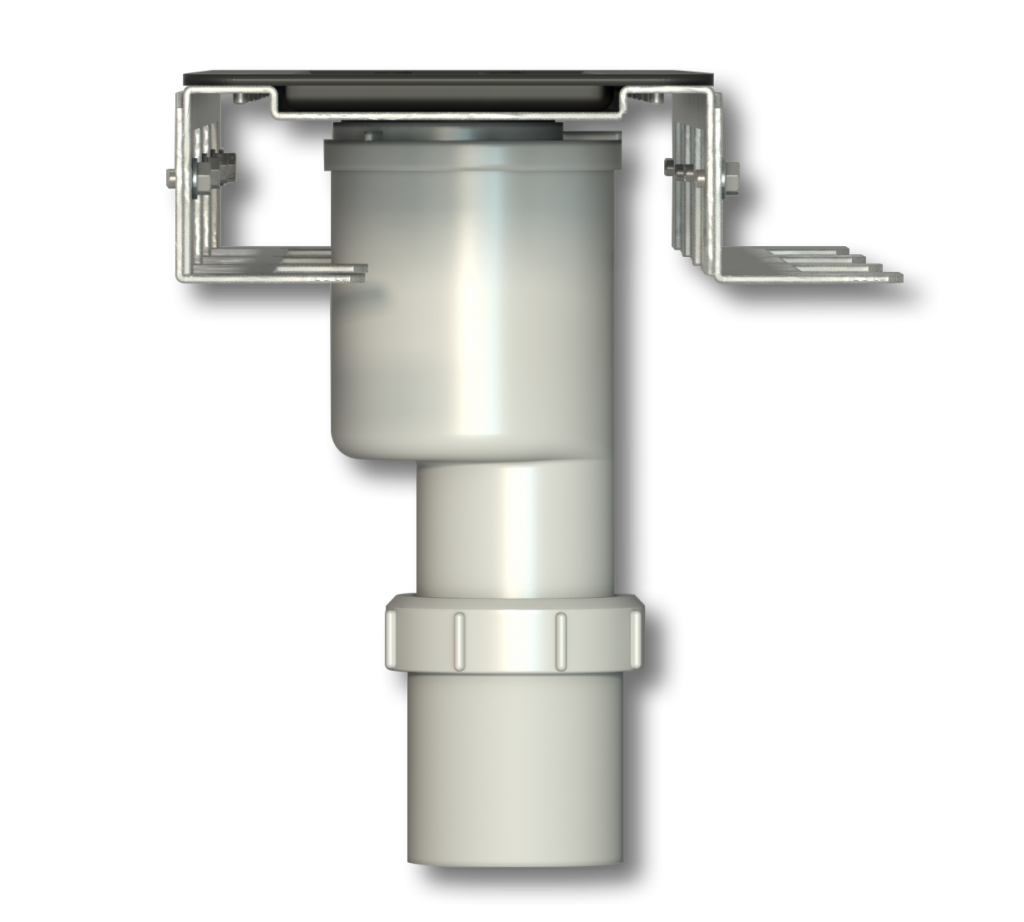

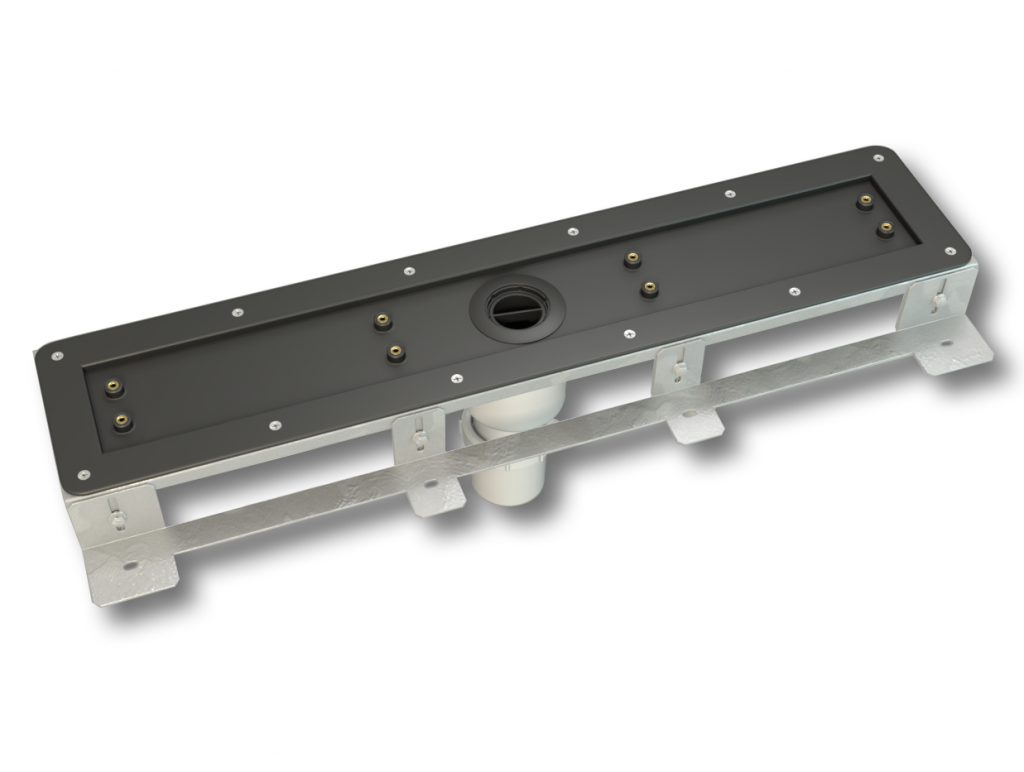

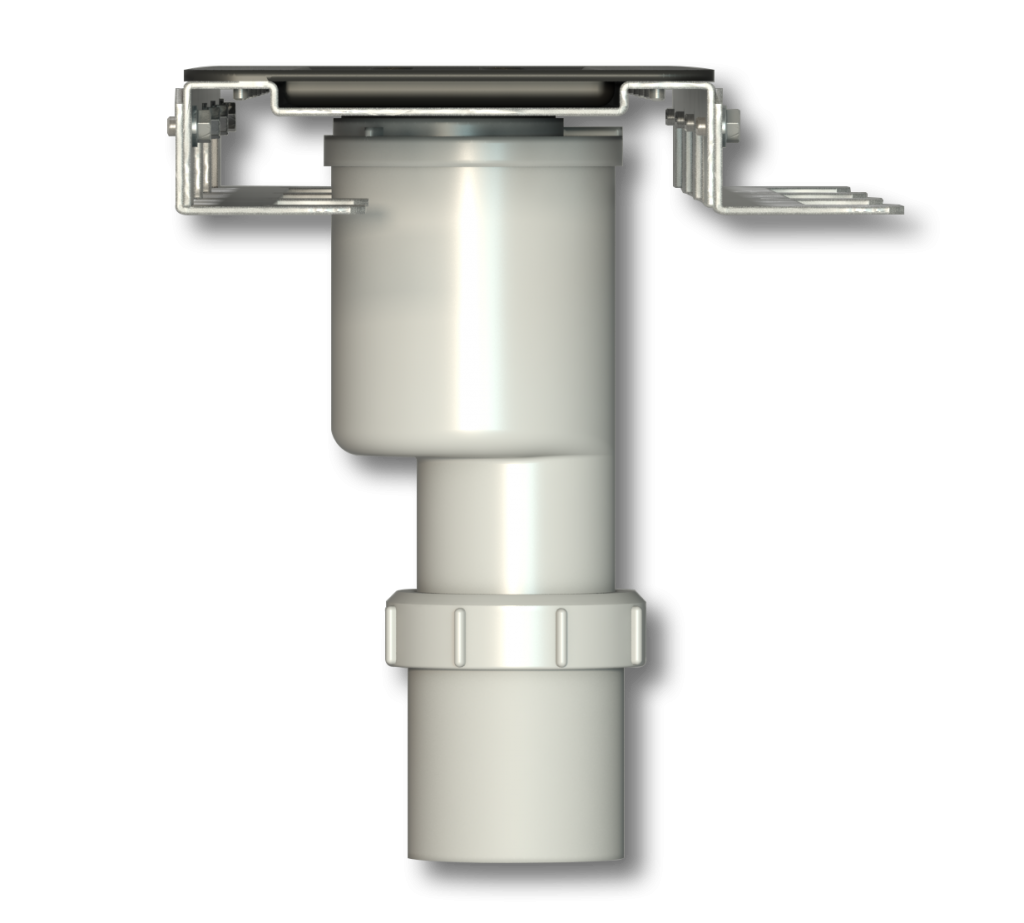

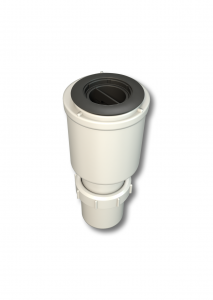

Vertical Trap

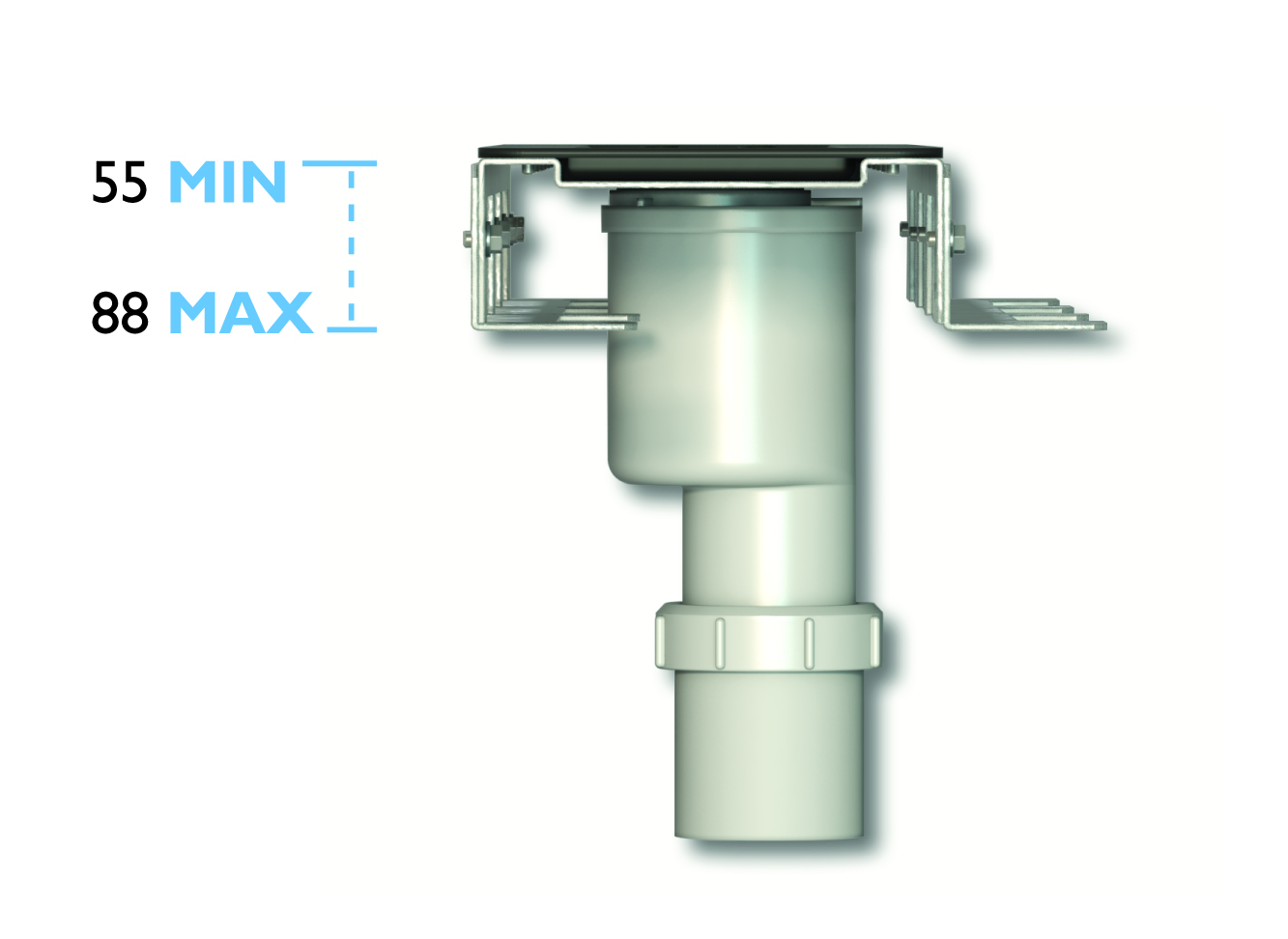

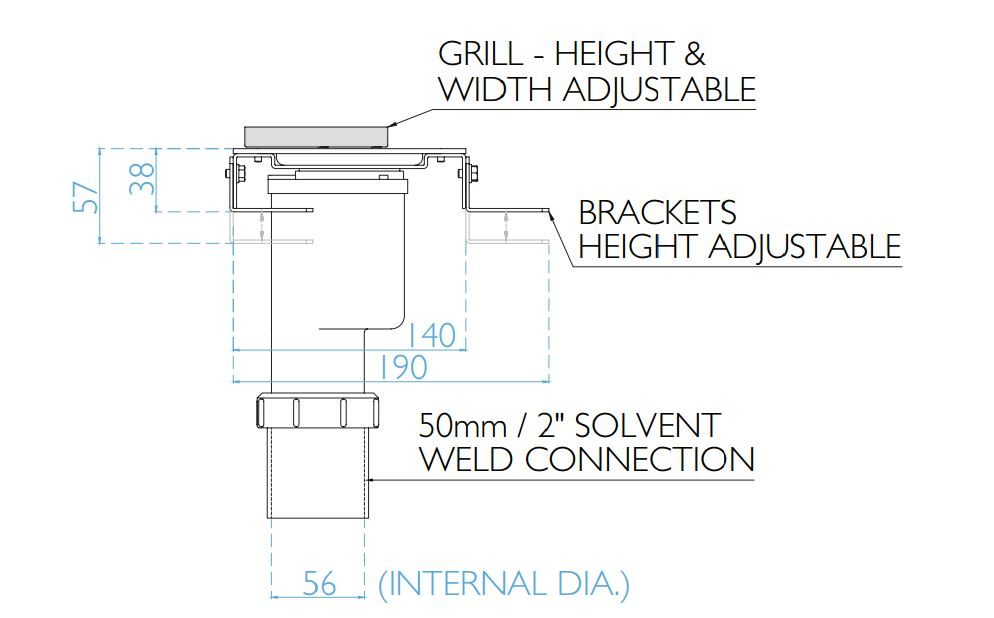

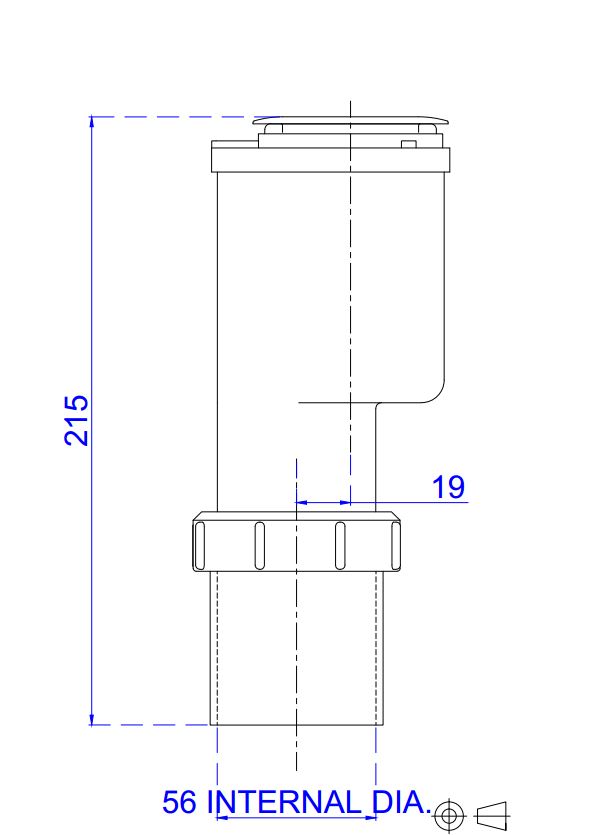

The vertical trap can be positioned through the slab and connected to a waste pipe below. It can be positioned centrally, left or right handed and is accessible from the top for cleaning and maintenance.
- 50mm Waterseal
- 50mm ABS pipe connection
The Linear Screed Line has a wall or floor grill option to enable the grill to be positioned flush against the shower wall or centrally within the shower area. Each connects to the drain body via 8 pre-set fixing points. The Linear Screed Line grills are height adjustable to suit different thicknesses of tiles.
The wall grills’ final position can also be width adjusted by up to 38mm, resulting in a neat position against the wall tiles once the body of the drain has been installed. This means a perfect finish is achieved every time.
Our grills are manufactured in 316 marine grade stainless steel to ensure a high quality and durable finish.
Floor Grill
The centre point of the Floor Grill is typically positioned 150mm from the wall, to create a two-way fall within the shower.
Grill width 58mm.
Wall Grill
The Wall Grill is positioned neatly up against the wall, to create a one-way fall within the shower.
Grill width 86mm.
Height Adjustment
Floor Grill

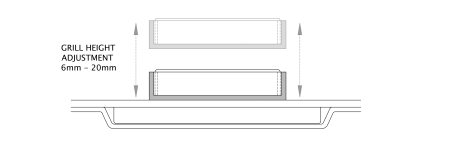

The Floor Grill is independently height adjustable in 1mm increments to suit different tile thicknesses.
Wall Grill
The Wall Grill is independently height adjustable in 1mm increments to suit different tile thicknesses. The final position of the Wall Grill is also independently width adjustable by up to 38mm.
Standard Grill Length
Our grill types are available in 15 lengths from 600mm to 2000mm – the majority of which are available from stock on a next day delivery service. ‡1
If a standard grill length does not suit your requirements, we can offer a FastTrack bespoke design service, manufactured and delivered in only 3-4 days.
The drain body is always installed first, before the waterproofing membrane is applied, with the grill installed during the tiling process.

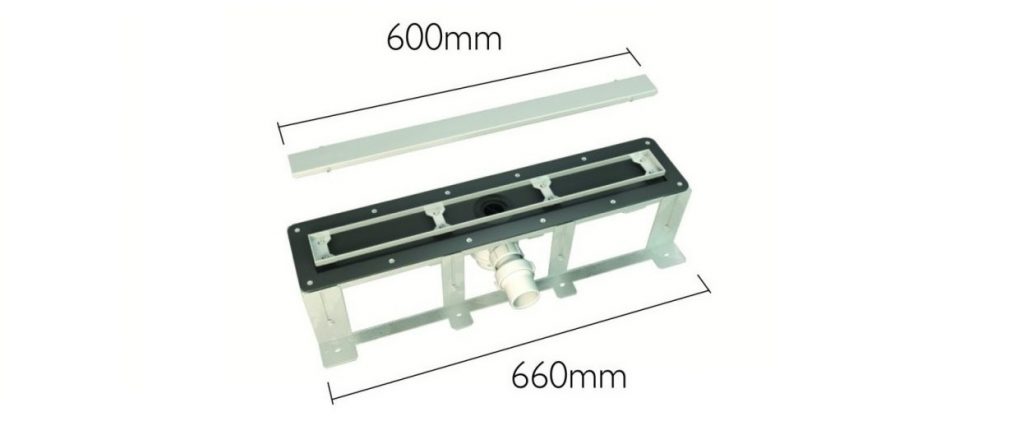

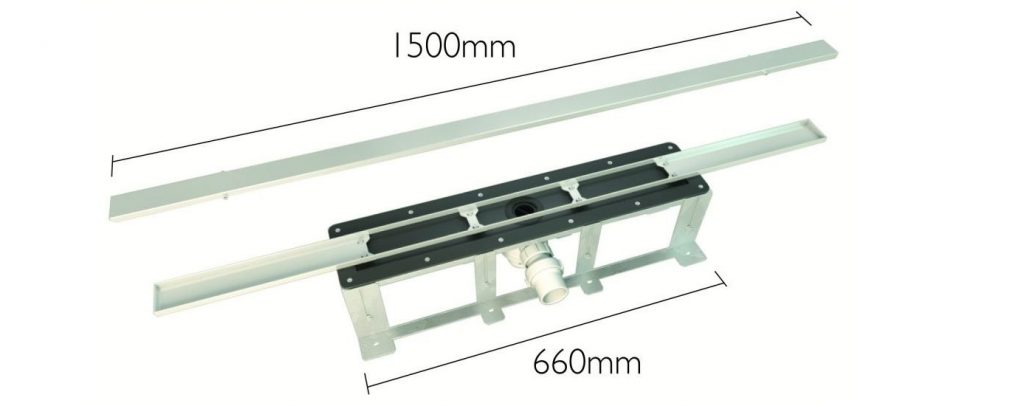

The drain body is always 660mm, no matter the length of the grill. If the grill surpasses 660mm and the ends of the grill overhang the drain body, this will need to be supported with a 100% bed of tile adhesive.
The following standard grill lengths are available:
- 600mm
- 700mm
- 800mm
- 900mm
- 1000mm
- 1100mm
- 1200mm
- 1300mm
- 1400mm
- 1500mm
- 1600mm
- 1700mm
- 1800mm
- 1900mm
- 2000mm
‡1 Excludes grill types B & C greater than 1500mm. For grill types S & F greater than 1500mm, the insert is supplied in two equal sections. Offset grill position available as a bespoke – see below for details.
Fast Track Bespoke
For wet rooms that require bespoke grill lengths, such as fitting a drain exactly between two walls, the FastTrack manufacturing service is the ideal option.
Exact grill lengths can be uncertain until a shower has been tiled, so to solve this problem, we offer a unique production service to manufacture and deliver bespoke length grills in just 3-4 days. This is possible thanks to the unique design of our drain, with the drain body supplied separately and the grill to follow.
- Any Length grill between 600mm-2000mm
- Manufactured and delivered in 3-4 days
- Grill types A, S8, S12, S20 & F
- No drawing required‡2
‡2 Subject to drain body being installed centrally within the shower area
Bespoke Grill Design
We also offer a design and manufacturing service to cater for bespoke widths and heights of grills that are required. The lead time for this service is 2-3 weeks. Please contact our technical team for full details.
Wall to Wall Grill

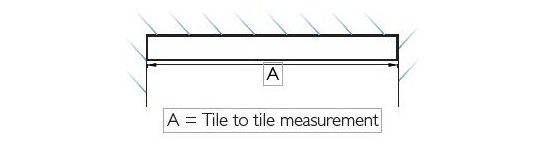

Full length wall to wall grills can now be ordered and manufactured in only 3-4 days using our FastTrack Bespoke grill service. We recommend taking a measurement on-site from the face of the wall tiles, to make sure no gaps are left on either side of the grill. The bespoke service provides stunning grills that fit perfectly between the two walls.
As the visible part of the system, the Linear Screed Line’s grill finish is the key element of the overall design. Whether you opt for a solid floor grill, stone-infill or frameless grill, there is a finish to complement any design of wetroom. The grill insert can be removed effortlessly when cleaning and maintenance is needed, using the key provided.
Our grills are manufactured using 316 marine grade stainless steel which ensures a durable, quality finish, and is backed by our Lifetime Guarantee.
Stone-Infill
Allows a section of matching stone or tile to be inserted into the grill to give a seamless finish to your wetroom.
Suits 6-8mm stone thickness.

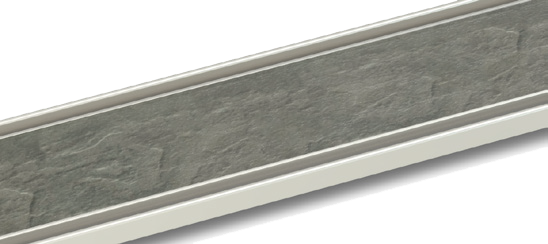

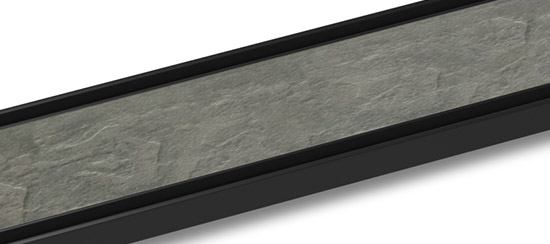

Type S-MB – Stone-Infill Matt Black
Suits 10-12mm stone thickness.
Type S20 – Stone-Infill‡1
Suits 18-20mm stone thickness.
Type S8
Type S12Frameless
Type F – Frameless Grill ‡1

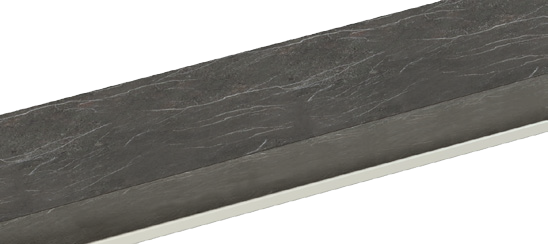

Our stunning frameless grill guarantees an almost invisible finish to your wet room. This is achieved by using a matching piece of natural stone or porcelain tile. By selecting a frameless design, you can be sure it complements all sanitary ware and brassware finishes.
Type F – Frameless Grill ‡1
Suits any thickness of stone. Only suitable for natural stone and porcelain tiles.
Type FStandard Grill
Choice of designs in a metallic finish

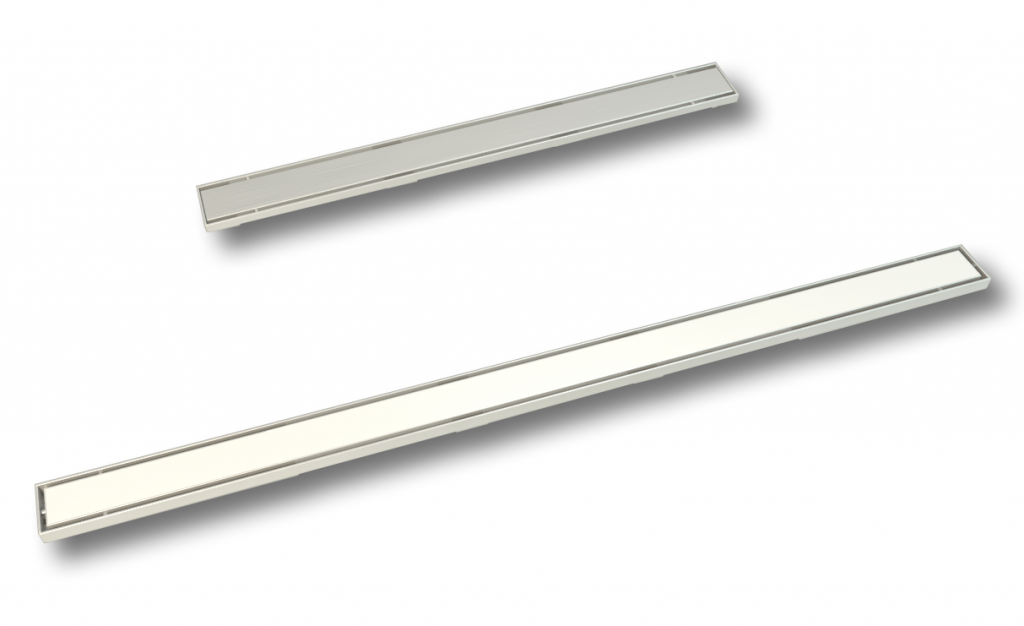

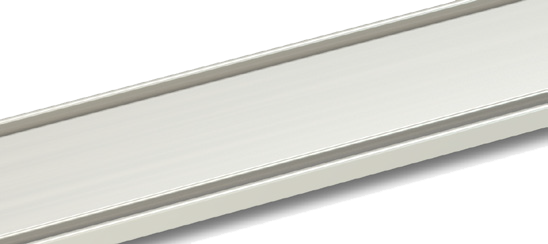

Type A – Solid
With a 5mm gap around the grill for a sleek stylish finish.

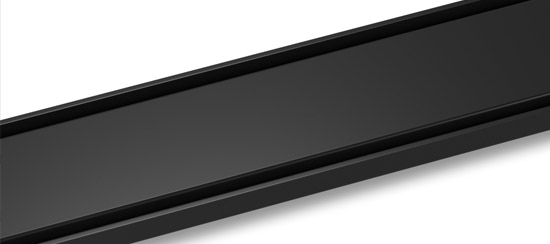

Type A-MB – Solid Matt Black

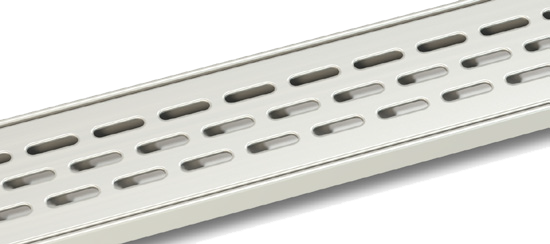

Type B – Slotted
Holes with a brushed stainless steel finish.
Type A
Type A MB
Type BOur stock grill lengths range from 600mm – 2000mm. If bespoke lengths are required, they can be manufactured and delivered in 3-4 days. All of our grill finishes featured are kept in stock, see ‘Grill Length’ within the Grill Type tab for available lengths and details of our bespoke service. To order a product, please see our product codes in the below tab.
‡1 For grill types S & F greater than 1500mm, the insert is supplied in two equal sections.
Type |
Drain |
Flow rate |
Traps |
Code |
|---|---|---|---|---|
Horizontal Trap – Standard Bracket
|
|
24 L/min | 1 Trap | LSL-1H/ST |
| |
41 L/min | 2 Traps | LSL-2H/ST | |
 |
68 L/min | 3 Traps | LSL-3H/ST |
Type |
Drain |
Flow rate |
Traps |
Code |
|---|---|---|---|---|
Vertical Trap – Standard Bracket
|
 |
24 L/min | 1 Trap | LSL-1V/ST |
 |
41 L/min | 2 Traps | LSL-2V/ST | |
 |
68 L/min | 3 Traps | LSL-3V/ST |
Type |
Drain |
Flow rate |
Traps |
Code |
|---|---|---|---|---|
Vertical Trap – Extra Shallow Bracket
|
|
24 L/min | 1 Trap | LSL-1V/ES |
| |
41 L/min | 2 Traps | LSL-2V/ES | |
| |
68 L/min | 3 Traps | LSL-3V/ES |
Product Codes – Wall Grill
Add code for Grill Finish:
Stone-Infill options:
S8 = Stone-Infill Stainless Steel
S8-MB = Stone-Infill Matt Black
Suits 6-8mm tile thickness
S12 = Stone-Infill Stainless Steel
S12-mb = Stone-Infill Matt Black
Suits 10-12mm tile thickness
S20 = Stone-Infill Stainless Steel
S20-MB = Stone-Infill Matt Black
Suits 18-20mm tile thickness
F = Suits any tile thickness
Brushed stainless steel options:
A = Solid
A-MB = Solid Matt Black
B = Slotted
Example:
Grill Type – Grill Length / Grill Finish
SWG – 1100 / S20
Wall Grill |
Length |
Code |
Grill Finish |
|---|---|---|---|
 |
600mm | SWG-600/– | Add code for Grill Finish: Stone-Infill options: S8 = Stone-Infill Stainless Steel S8-MB = Stone-Infill Matt Black Suits 6-8mm tile thickness S12 = Stone-Infill Stainless Steel S20 = Stone-Infill Stainless Steel Brushed stainless steel options: |
| 700mm | SWG-700/– | ||
| 800mm | SWG-800/– | ||
| 900mm | SWG-900/– | ||
| 1000mm | SWG-1000/– | ||
| 1100mm | SWG-1100/– | ||
| 1200mm | SWG-1200/– | ||
| 1300mm | SWG-1300/– | ||
| 1400mm | SWG-1400/– | ||
| 1500mm | SWG-1500/– | ||
| 1600mm ‡1,2 | SWG-1600/– | ||
| 1700mm ‡1,2 | SWG-1700/– | ||
| 1800mm ‡1,2 | SWG-1800/– | ||
| 1900mm ‡1,2 | SWG-1900/– | ||
| 2000mm ‡1,2 | SWG-2000/– | ||
| Bespoke ‡2,3 | SWG -FT/– | ||
| Bespoke ‡1,2 | SWG -BES/– |
Product Codes – Floor Grill
Add code for Grill Finish:
Stone-Infill options:
S8 = Stone-Infill Stainless Steel
S8-MB = Stone-Infill Matt Black
Suits 6-8mm tile thickness
S12 = Stone-Infill Stainless Steel
S12-mb = Stone-Infill Matt Black
Suits 10-12mm tile thickness
S20 = Stone-Infill Stainless Steel
S20-MB = Stone-Infill Matt Black
Suits 18-20mm tile thickness
F = Suits any tile thickness
Brushed stainless steel options:
A = Solid
A-MB = Solid Matt Black
B = Slotted
Example:
Grill Type – Grill Length / Grill Finish
SFG – 1100 / S20
Floor Grill |
Length |
Code |
Grill Finish |
|---|---|---|---|
 |
600mm | SFG-600/– | Add code for Grill Finish: Stone-Infill options: S8 = Stone-Infill Stainless Steel S8-MB = Stone-Infill Matt Black Suits 6-8mm tile thicknessS12 = Stone-Infill Stainless Steel S12-mb = Stone-Infill Matt Black Suits 10-12mm tile thickness S20 = Stone-Infill Stainless Steel Brushed stainless steel options: |
| 700mm | SFG-700/– | ||
| 800mm | SFG-800/– | ||
| 900mm | SFG-900/– | ||
| 1000mm | SFG-1000/– | ||
| 1100mm | SFG-1100/– | ||
| 1200mm | SFG-1200/– | ||
| 1300mm | SFG-1300/– | ||
| 1400mm | SFG-1400/– | ||
| 1500mm | SFG-1500/– | ||
| 1600mm ‡1,2 | SFG-1600/– | ||
| 1700mm ‡1,2 | SFG-1700/– | ||
| 1800mm ‡1,2 | SFG-1800/– | ||
| 1900mm ‡1,2 | SFG-1900/– | ||
| 2000mm ‡1,2 | SFG-2000/– | ||
| Bespoke ‡2,3 | SFG -FT/– | ||
| Bespoke ‡1,2 | SFG -BES/– |
