The Solo4 Vinyl Drain is a height adjustable shower gulley for use with vinyl sheet flooring, available with a horizontal or vertical outlet. Suitable for use in commercial and domestic wetrooms, barrier free showering, retirement and care homes, student accommodation, hotels and leisure, backed by our Lifetime Guarantee.
The Solo4 Vinyl Drain has been developed specifically for use with vinyl sheet flooring, on screeded floors, concrete slabs, planks and block and beam floors. The integral clamping ring ensures a watertight seal between the sheet flooring and the drain body. Available with either a horizontal or vertical outlet, the drain incorporates height adjustable brackets, allowing it to be easily installed in almost any floor depth.
Want to Order Our Solo4 Vinyl Drain product?
Key Features
- Horizontal or Vertical Outlet
- Clamping ring for vinyl sheet flooring Flow rate up to 24 L/min

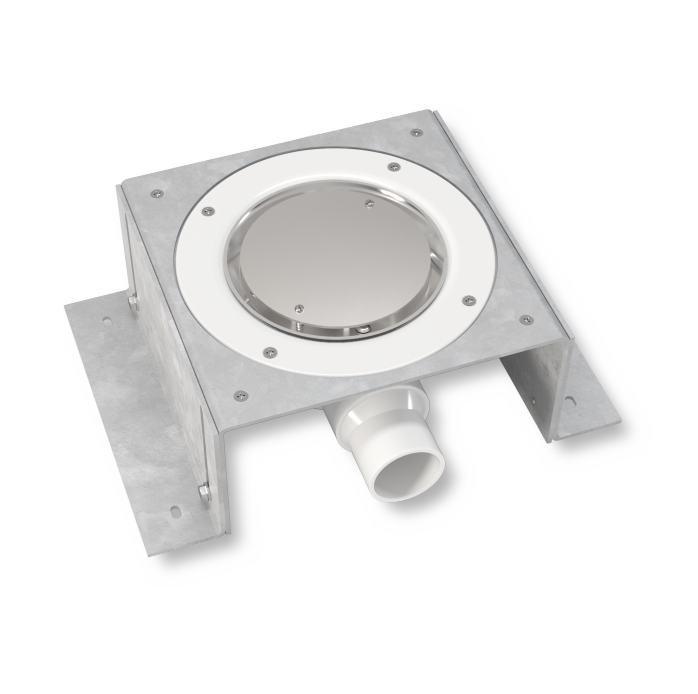

- 50mm Waterseal – Horizontal Outlet Minimum height 38mm with Extra Shallow Brackets

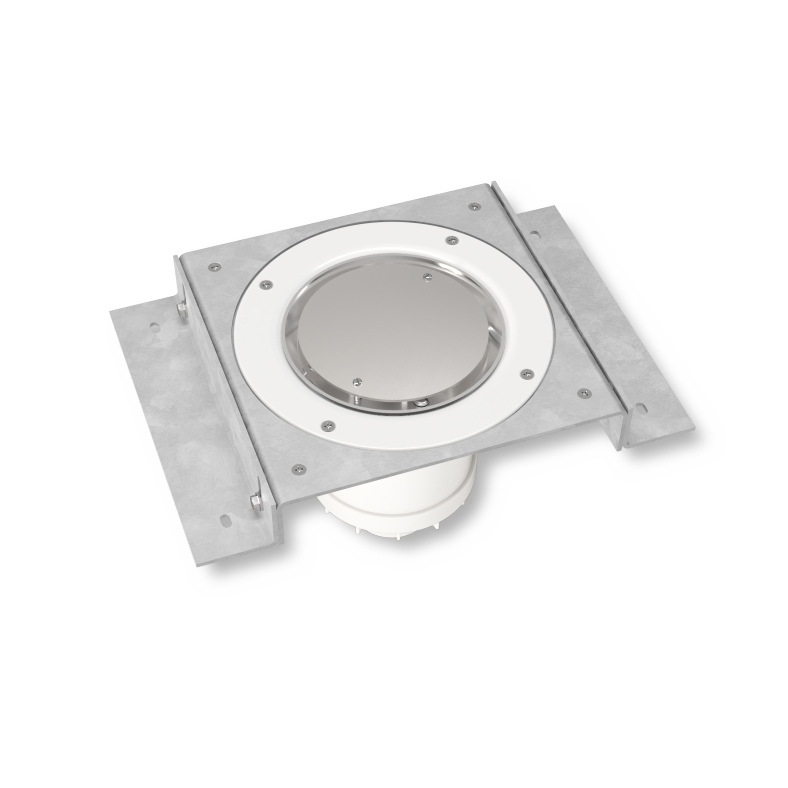

- 75mm Waterseal – Vertical Outlet
- Flow rate up to 35 L/min, BS EN 1253-2:2015*
- Lifetime Guarantee
- Height adjustable brackets
- Minimum height 104mm – Horizontal Outlet
- Minimum height 55mm – Vertical Outlet
- Rotatable outlet
* Flow rates indicated are a guide only, based upon 42mm waste pipe and swept bends.
Other products in the Solo4 range
[Solo4] – The Solo4 drain has been designed for concrete or screeded floors for use on concrete slabs, planks and block and beam floors.
[DocM Drain] – The Solo4 DocM Drain is designed to meet Part M regulations, allowing a wetroom drain to be installed beneath a bathtub and easily converted for future use.
[Back‑Up Drain] – The Solo4 Back‑Up Drain is a low-profile secondary drain with a waterless trap that prevents odours even when unused.
